TH180

18 Square groove stainless steel series friction stay for top hung windows

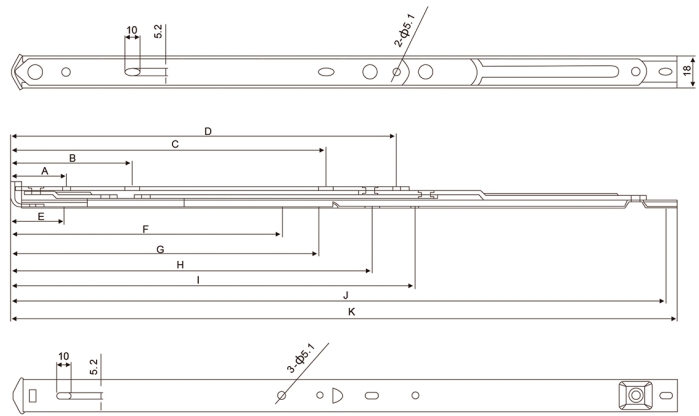

Dimensions

pay attention：The company reserver the right to interpret and change the specificationsand illustrated details without prior notification.

◎Select the best stainless steel material. Operates well after 50000 times test ofopen/close.

◎Friction Stays ScrewsType: M5x8mm Stainless Steel Screws, Or St4.2/4.8x12mm.

Friction Stays Slider type

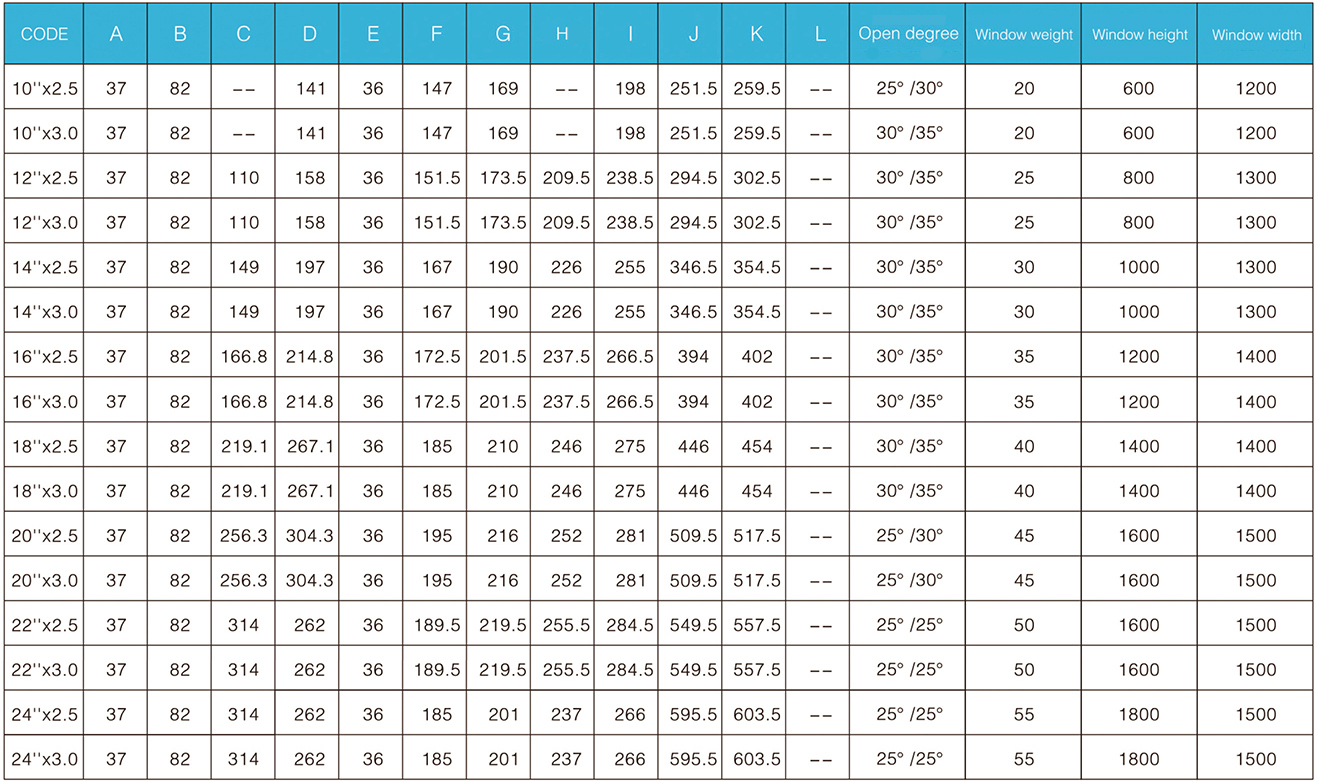

Size ofinstallation(mm)
