TL-T99

Electric floor hinge

Function Instruction

※The automatic operation of the door body is achieved by driving the transfer arm rod with the output shaft of the unit, which can be applied both indoors and outdoors.

※ Built in pressure reducing valve to prevent damage or oil leakage of the ground spring caused by closing the door under external strong pressure or strong wind conditions.

※ Universal design, suitable for left, right, and single/double directional opening of door leaves.

※ Low temperature antifreeze hydraulic oil is used to ensure that the closing speed will not be affected at minus 40'C temperature.

The cement box can be adjusted to a length of 5mm and a width of 5mm. When calibrating the zero position, it can be vertically adjusted by ± 2 °, making product installation more convenient.

Product Description

◎Panel Type：Mirror, Wire Drawing

◎Materials：Steel Iron

◎Maximun Wide Door Leaf：≤1200mm

◎The Maximun Bearing Weight：180kg

◎Power Supply：AC220V±10%50/60Hz

◎Open Time：6~12s

◎Temperature：-20℃~+55℃

◎Protection Level：1P12D

◎Speed Governing Control：Two Stage Adjustable Speed

◎Available For：Steel And Wooden Door, 8~12mm Toughened Glass Door

◎Function：One Way Open At 116°,  90° And 116°Two-Way Positioning

◎Service Life：Switching For 500,000 Times

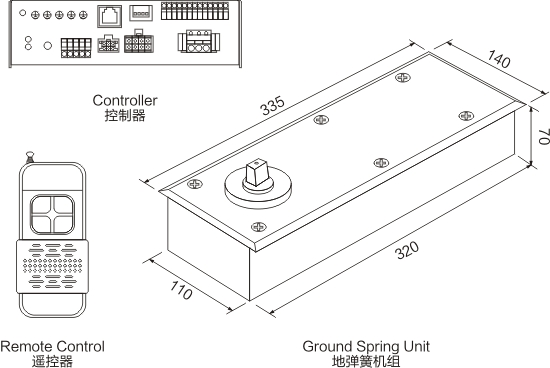

Technical Drawings

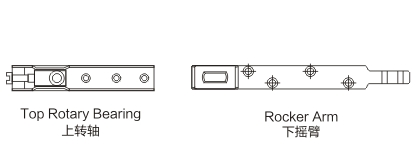

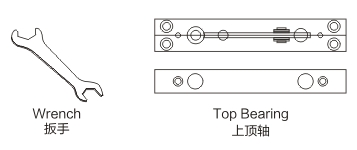

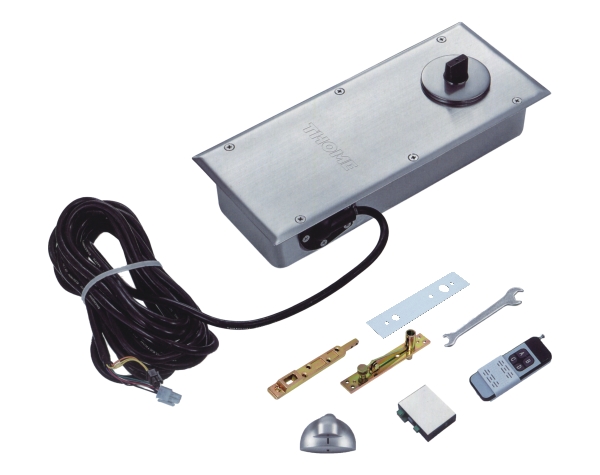

Installation Accessories
