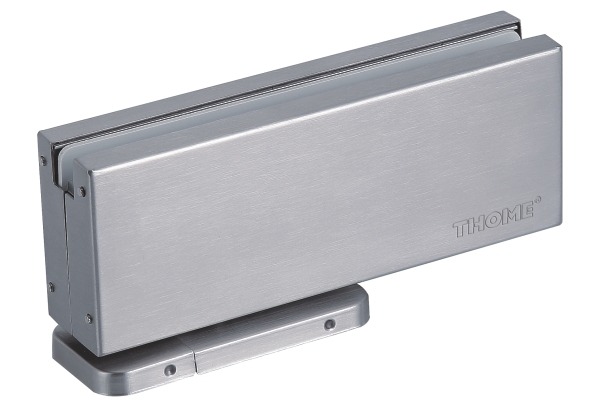

TL-T98

Hidden floor hinge

Function Instruction

※ Suitable for office buildings, shopping malls, and indoor glass doors.

※ Eliminate the hassle of pre embedding or drilling, reduce labor hours, save costs, and provide a smooth and comfortable feel that surpasses traditional springs.

※Main functions: Regardless of left or right doors, two-way opening, adjustable closing and buffering two-stage force.

※Main features: Over 300000 test openings required.

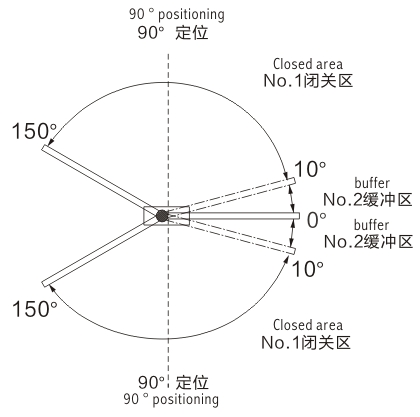

◎90 °positioning function

◎ No positioning function can choose

◎The maximum Angle of double door: around 150 °

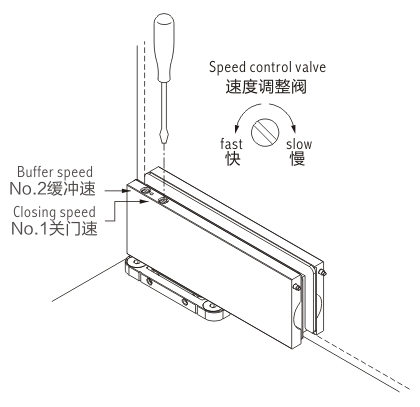

There are two period of speed adjustment

◎No. 1 closing speed: 150° ~10 °

◎No. 2 buffer speed: 10°~0 °

Product Description

◎Finish：Sand Stainless

◎material:Aluminum alloy/SUS 304 stainless steel

◎Maximun wide door leaf：750-1000mm

◎Apply to the thickness of the door ：8-12mm

◎The maximun bearing weight：≤100kg

◎Body size：186x68x36mm

◎biggest opening Angle ：150°

◎Open torque：≤24(N.M)

◎Close the moment：≥18(N.M)

◎Scope of application：Toughened glass

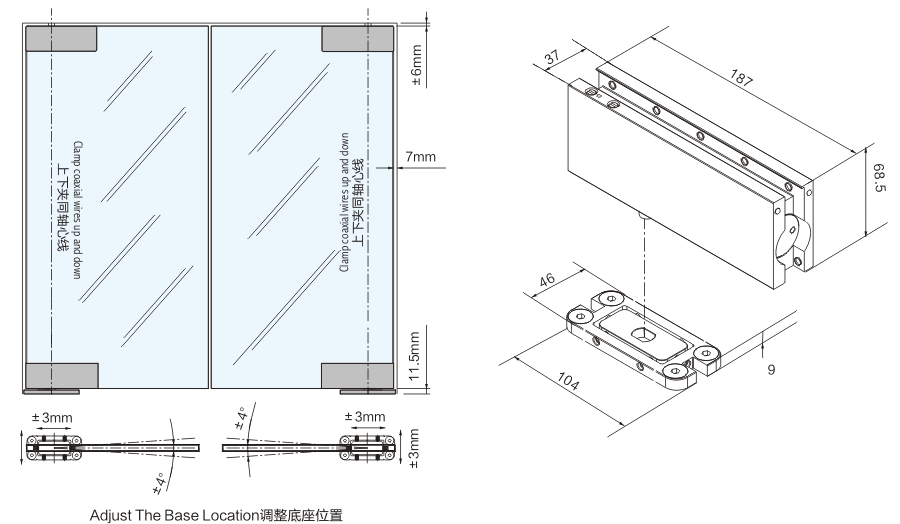

Technical Drawings
