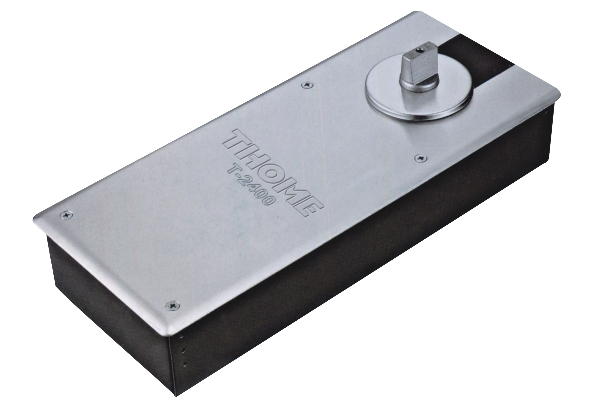

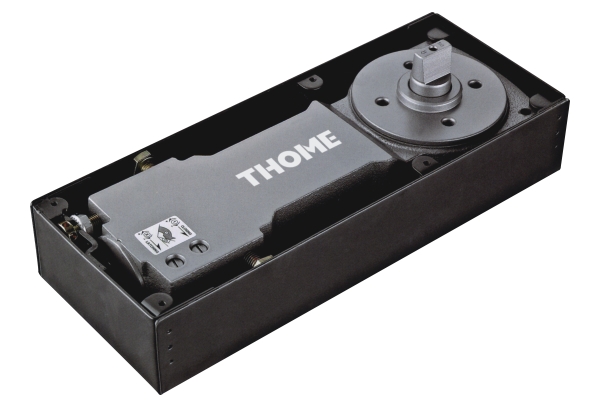

TL-T2400

Heavy duty hydraulic floor hinge

Function Instruction

※ Built in pressure reducing valve to prevent damage or oil leakage of the ground spring caused by closing the door under external strong pressure or strong wind conditions.

※ Universal design, suitable for left, right, and single/double directional opening of door leaves.

※Using low-temperature antifreeze hydraulic oil to ensure that the closing speed will not be affected at temperatures below minus 40 ℃.

※The cement box can be adjusted to a length of 5mm and a width of 5mm. When calibrating the zero position, it can be vertically adjusted by ± 2 °, making product installation more convenient.

Product Description

◎Panel Type：Mirror, Wire Drawing

◎Materials：Steel Iron

◎Maximun Wide Door Leaf：≤1500mm

◎The Maximun Bearing Weight：250kg

◎Speed Governing Control：Two Stage Adjustable Speed

◎Available For：Steel And Wooden Door, 8~12mm Toughened Glass Door

◎Function：One Way Open At 116°,  90° And 116°Two-Way Positioning

◎Service Life：Switching For 500,000 Times

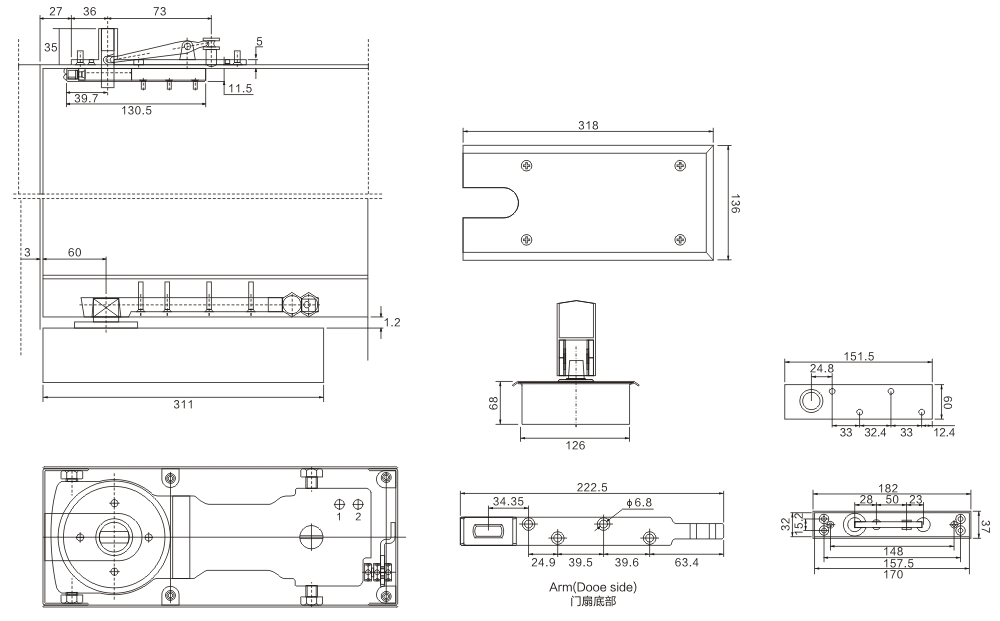

Technical Drawings
